DDK-LED Corn Light 58W/80W/100W/120W E40

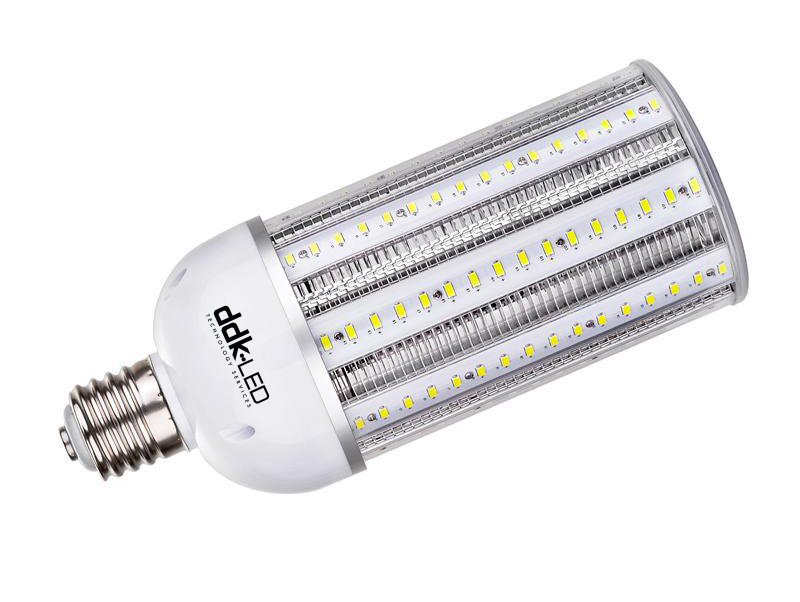

  • Work Image

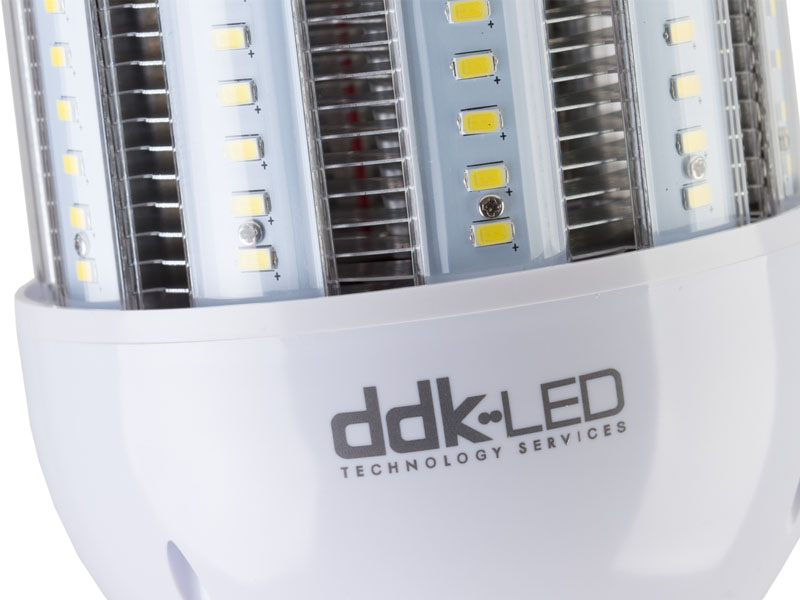

  • Work Image

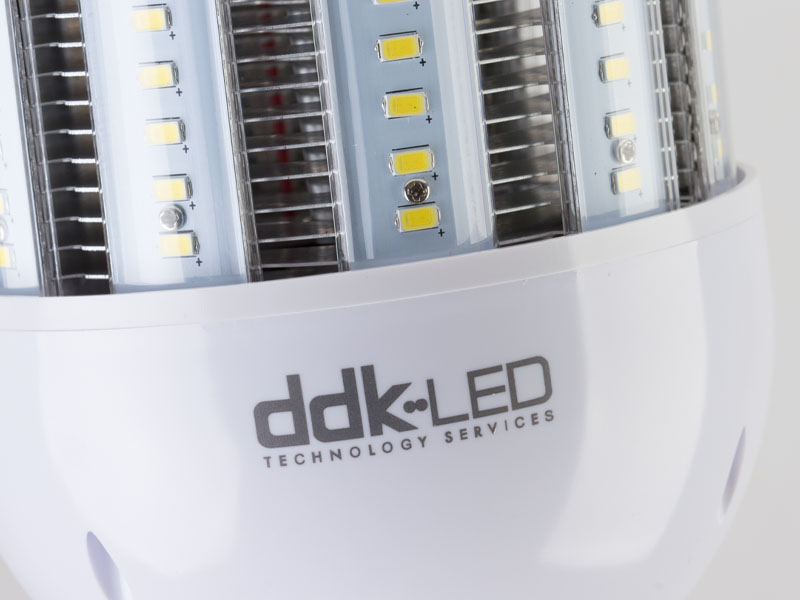

  • Work Image

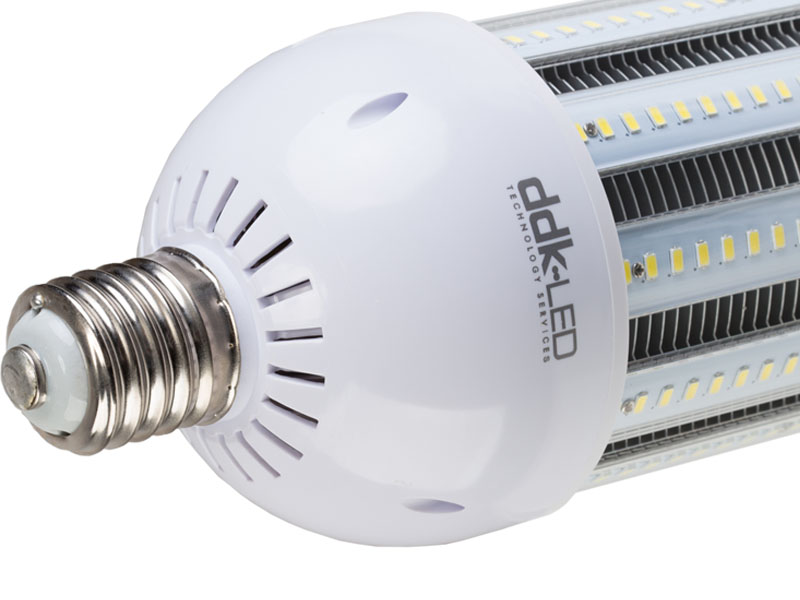

  • Work Image

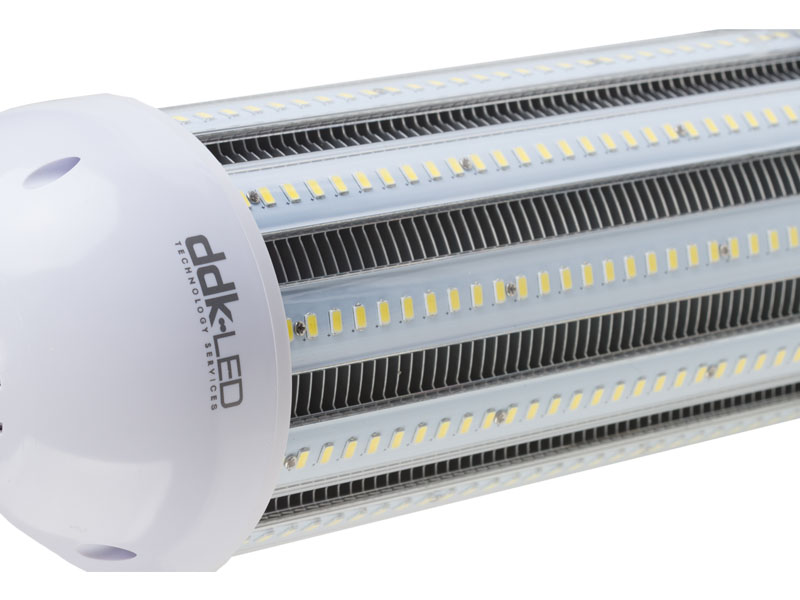

  • Work Image
  • Work Image
  • Work Image

DDK-LED Corn Light ​

58W/80W/100W/120W E40

download documents

DATASHEET (PDF)

INSTALLATION MANUAL (PDF)

IES / LTD FILES

Basic parameters
  • Input power
  • Lamp holder
  • IP Rating
  • Luminous flux
  • Beam Angle
  • CRI (Ra>)
  • CCT
  • Material
  • Lifetime
  • Warranty (years)
  • Input voltage
  • Certification
  • Photometric test
  • Photometric Lab.
  • 58W/80W/100W/120 W
  • E40
  • IP 63
  • 7000lm/9600lm/12000lm/15000lm
  • 360°
  • >80Ra
  • 2700K-7000K
  • Fin Aluminium + PC
  • > 80 000 hrs
  • 3
  • 85-265Vac 50/60Hz
  • CE, PSE, RoHS, SAA, UL
  • acc.STN EN 13032
  • Skúšobňa FEI STU, Ilkovičova 3, BA
DDK-LED FL
features

Energy class A+
fast turn on, without overheating
pure white color / Warm white color
without problems with cold start
high CRI value, significantly better color rendering
energy saving of 80% compared to conventional lamps

applications

replacement for CFL, mercury, sodium lamps

used in projects

project KJ Trade
nergy saving 73% , Return on investment 3 years
