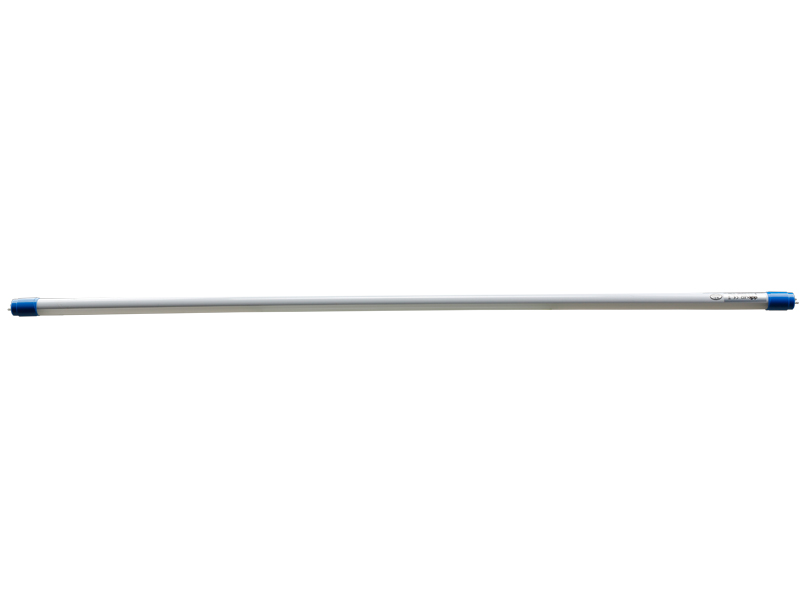

DDK-LED T8 18W 1200

  • Work Image
  • Work Image
  • Work Image

DDK-LED T8 18W 1200

DOWNLOAD DOCUMENTS

DATASHEET (PDF)

Basic parameters
  • Input power
  • Lamp holder
  • IP Rating
  • Luminous flux
  • Beam Angle
  • CRI (Ra>)
  • CCT
  • Material
  • Dimensions ø
  • Lifetime
  • Warranty (years)
  • Input voltage
  • Certification
  • Photometric test
  • Photometric Lab.
  • 18W
  • G13
  • IP20
  • 800-900Lm
  • 120°
  • >80
  • 4000K
  • Plastic (Milk White+Blue)
  • Ø26x1198mm
  • > 80 000 hrs
  • 3 years
  • AC100-240V 50-60Hz
  • CE, PSE, RoHS, SAA, UL
  • acc.STN EN 13032
  • Skúšobňa FEI STU, Ilkovičova 3, BA
DDK-LED FL
features

No glare
Indoor Use
Energy class A+
Short circuit protection
Constant current accuracy 3%
Long lifespan, High light efficiency
Energy saving, no mercury, no UV or IR radiation
Special optical design, lighting distribution uniformity

applications

Replacement for conventional T8 fluorescent tubes
Hotels
Conference/meeting room
Commercial Areas
Residential/Institution Buildings
Schools
Hospitals

USED IN PROJECTS

DDK Slovakia
Energy saving 63% , Return on investment 3 years
